IronRidge FF2-02-M2 or FF2-02-B2 FlashFoot2

IronRidge FF2-02-M2 or FF2-02-B2 FlashFoot2

$12.76

Condition:
New
Availability:
Ships in 1 business day or less.
Weight:
0.90 LBS
Warranty:
25 Year Manufacturer
Shipping:
Stellar Speed! ADD TO CART TO ESTIMATE SHIPPING

IronRidge Logo

IronRidge FF2-02-M2 or FF2-02-B2 FlashFoot2

The strongest attachment in solar.

IronRidge® FlashFoot2® raises the bar in solar roof protection. The unique water seal design is both elevated and encapsulated, delivering redundant layers of protection against water intrusion. Available in mill and black finishes.

In addition, the twist-on Cap perfectly aligns the rail attachment with the lag bolt to maximize mechanical strength. The flashing has a 9” x 12” profile, which minimizes interference with roofing nails. Comes with flashing, lag bolt, and Cap. Passed the TAS-100 Wind-Driven Rain Test.

THREE-TIER WATER SEALING

An elevated platform diverts water away, while a stack of rugged components raises the seal an entire inch. The seal is then fully-encased by the Cap.

SINGLE-SOCKET SIZE

A custom-design lag bolt allows you to install FlashFoot2® with the same 7/16” socket size used on other Flush Mount System components.

TWIST-ON CAP

The unique Cap design encapsulates the lag bolt and locks into place with a simple twist. Change the orientation of the slotted cap by rotating it 90 degrees before twisting on.

CONCENTRIC LOADING

FlashFoot2® is the only product to align the rail and lag bolt. This concentric loading design results in a stronger attachment for the system.

Variations

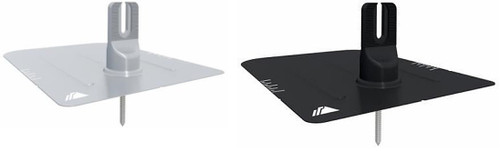

  • FF2-02-M2: FlashFoot2 Mill
  • FF2-02-B2: FlashFoot2 Black

Attachments

UL 2703 CERTIFICATION

All IronRidge® Systems have been listed to UL 2703, the standard for evaluating solar mounting systems. This ensures they maintain strong electrical and mechanical connections over an extended period of time in extreme outdoor environments.

25-YEAR WARRANTY

IronRidge® products come with a 25-year warranty, guaranteeing they will be free of defects in materials and manufacturing which materially impair the use of the products for the purposes for which they were designed.
