MidNite Solar MNBABYBOX Baby Box Enclosure

MidNite Solar MNBABYBOX Baby Box Enclosure. Circuit Breakers not included.

General use powder coated aluminum enclosure for retrofits, small inverter disconnect, PV disconnect, AC or DC distribution. Used all around the world. 3/4 & 1" knockouts each end. Accepts up to 4 Din mount breakers from 1 to 63 Amps.

Specifications

• Environmental Rating - Type 1 (Indoor)
• Max. AC Voltage - 277
• Max. DC Voltage - 300
• Max. Wire Size - 6 AWG
• Warranty - 5 yrs.
• Size: 7"L x 3"W x 2.5"D
• Weight: 2 Lbs
• Made in the USA

FAQs

• How can I ground the MNBABYBOX?
  On the rear of the box, there is a small punched hole between the mounting holes where can you insert a screw and a crimp or ring terminal.
• Can I combine my strings after the MNBABYBOX using a branch connector?
  No, that is not recommended. Instead, it is best to go with a MidNite Solar combiner box, a MidNite Solar E-Panel, or the MidNite Solar MNBIGBABY.

Attachments

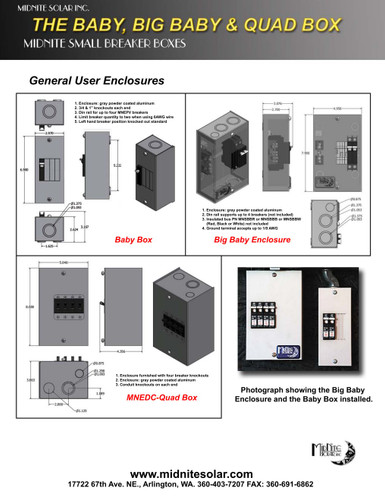

• MidNite Solar Small Enclosures Brochure

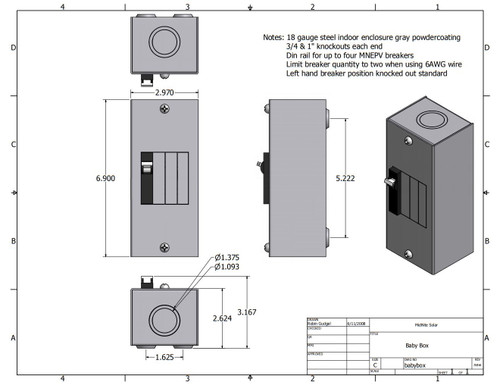

• MidNite Solar Baby Box Drawing
