Morningstar SG-4 SunGuard Solar Controller

2 product reviews
$33.00
Brand Name:
Morningstar
Current Stock:
5
Shipping:
Free Shipping
SKU:
SG-4
Condition:
New
Weight:
0.38 LBS
Availability:
Ships in 1 business day.
Quantity:

Product Description

Morningstar Logo

Morningstar SG-4 SunGuard Solar Controller.

Morningstar's SunGuard™ is the world's leading single module controller. We have combined all the advantages of our SunSaver charging circuit with less expensive packaging to provide an economical controller for small PV systems.

Key Features and Benefits

  • Series design (not shunt)
  • 100% solid state
  • True 0 to 100% PWM duty cycle
  • Setpoint accuracy to 60 mV
  • Temperature compensation
  • Rated for 25% overloads
  • No need to derate
  • Lightning protected with 1500 W transorbs
  • Self-consumption is 6 mA
  • Fully encapsulated in epoxy potting
  • ABS plastic, impact-resistant case
  • Outdoor rated, Hypalon connecting wires
  • 5 Year Warranty

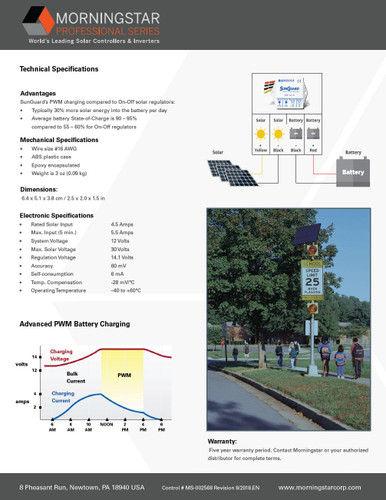

Specifications

  • Rated Solar Current: 4.5A
  • Rated Loan Current*: None
  • System Voltage: 12V

* There is no load connection on the SunGuard

Other brands survive harsh conditions. Morningstar thrives in them.

With more than 25 years of experience and well over four million products in over 100 countries – most of them still in operation – Morningstar has truly earned its reputation for building the “world’s leading solar controllers.” At Morningstar, the word “reliability” means a lot more than a marketing adjective. Morningstar’s employee-owned culture works hard to maintain the lowest hardware failure rate in the industry, because our own reputations literally ship with every product.

That’s why system designers of the most mission-critical solar energy installations around the world insist on Morningstar components, and why you should too on your next project. From mineral mines in South America to telecom repeater stations in Canada, from gas wells in the Middle East to mountain peaks in Nepal, Morningstar technology and legendary quality make the difference between success and failure – and make renewable energy a practical, cost-effective, and long-term solution.

Attachments

Morningstar's SunGuard controller is a one module solar controller for professional and leisure markets.

Morningstar SunGuard G-4

Product Reviews

Write Review

  1. MorningStar SunGuard-4

    Posted by on

    This is the second unit I have put in service. They work very well, I am using them with 10 watt solar panels. They keep the batteries charged and never over charge them. There is very little voltage drop across the unit when the sun is shining. When there is no sun, the spec indicates there is only 0.006 amp reverse current though the unit. You don't need a diode

  2. MorningStar SunGuard-4

    Posted by on

    This is the second unit I have put in service. They work very well, I am using them with 10 watt solar panels. They keep the batteries charged and never over charge them. There is very little voltage drop across the unit when the sun is shining. When there is no sun, the spec indicates there is only 0.006 amp reverse current though the unit. You don't need a diode
