Look for "Stellar Speed!" items that ship in 1 business day or less! Freight items that ship "Stellar Speed" ship in 3 business days or less.

SALE

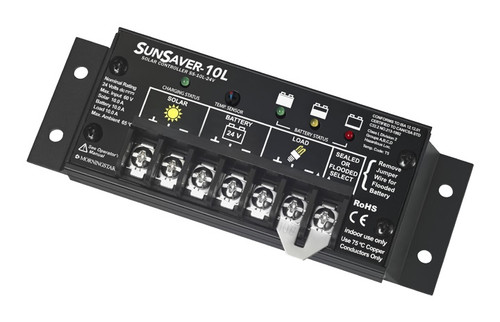

Morningstar SS-10L-24V SunSaver Solar Controller 10A 24VDC

Morningstar SS-10L-24V SunSaver Solar Controller 10A 24VDC

$134.00 $115.00
(You save $19.00)

SKU:
SS-10L-24V
Condition:
New
Availability:
Ships in 1 business day or less.
Weight:
0.94 LBS
Warranty:
5 Year Manufacturer
Shipping:
Stellar Speed! FREE SHIPPING

Out of stock

Morningstar Corporation Logo       Stella Price

Morningstar SS-10L-24V SunSaver Solar Controller 10A 24VDC. Add to cart to see our every day low Stellar Price!

Morningstar's SunSaver™ is the world's leading small solar charge controller for both professional and consumer applications including standard features and capabilities not found in any other small PV controller.

SunSaver's technology provides:
  • Exceptional Reliability
  • PWM Battery Charging
  • Consistent High Quality

The SunSaver’s advanced design delivers outstanding performance and value. The SunSaver’s low cost is made possible by Morningstar’s unique approach to design and manufacturing:

  • Automated production
  • ISO 9002 quality programs
  • Latest power electronic technologies
  • Latest control and logic technologies
  • High volume manufacturing

Features:
  • 10A Rated Solar Current at 24VDC with Low Voltage Disconnect
  • Small system charge controller
  • May be used in parallel for higher current
  • 5 Year Warranty
  • 100% solid state
  • Series design (not shunt)
  • True 0 to 100% PWM duty cycle
  • Setpoint accuracy: +/- 25mV
  • Rated for 25% overloads
  • Fully encapsulated in epoxy potting
  • Marine rated terminals / anodized case
  • Temperature compensation
  • Sealed / Flooded battery select
  • No need to derate
  • Parallel for 40 amps or more
  • Green charging / Red LVD indicators

Mechanical Specifications
  • Wire size #10 AWG (5.2 mm2)
  • Anodized aluminum case
  • Marine rated terminals
  • Epoxy encapsulated
  • Weight is 8 oz (0.23 kg)

Morningstar String Calculator
The Morningstar String Calculator will help you decide how many PV modules you may use in series and parallel with a Morningstar charge controller.

Other brands survive harsh conditions. Morningstar thrives in them.

With more than 25 years of experience and well over four million products in over 100 countries – most of them still in operation – Morningstar has truly earned its reputation for building the “world’s leading solar controllers.” At Morningstar, the word “reliability” means a lot more than a marketing adjective. Morningstar’s employee-owned culture works hard to maintain the lowest hardware failure rate in the industry, because our own reputations literally ship with every product.

That’s why system designers of the most mission-critical solar energy installations around the world insist on Morningstar components, and why you should too on your next project. From mineral mines in South America to telecom repeater stations in Canada, from gas wells in the Middle East to mountain peaks in Nepal, Morningstar technology and legendary quality make the difference between success and failure – and make renewable energy a practical, cost-effective, and long-term solution.

FAQs

  • What is Low Voltage Disconnect (LVD)?
    The LVD/LVDR function of Morningstar controllers is designed to protect system batteries from overdischarge and (to a lesser extent) protect sensitive system loads from low battery voltage. When the battery drops to the LVD threshold, loads connected to the controller are shut OFF to give the batteries time to recover their charge. When the battery voltage rises above the LVDR threshold, loads that were previously disconnected are turned back ON. Low Voltage Disconnect/Reconnect does not affect the controller’s charging ability; charging continues whether in the disconnected state or in the connected state.
Attachments

Solar application utilizing a Morningstar SunSaver-6 solar controller to illuminate art sculptures. Photo courtesy of Mark Fiore.

Morningstar SS-6-12V Application
