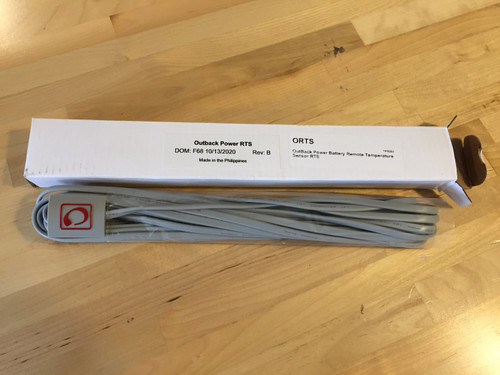

OutBack Power RTS Battery Remote Temperature Sensor, Gray

OutBack Power Battery Remote Temperature Sensor for Inverter/Charger or Charge Controller, includes 20 Foot Cable, Part No. RTS. New model comes in gray.

The OutBack Remote Temperature Sensor (RTS) is essential for proper battery charging. All OutBack Power products with integrated battery charging have temperature compensation systems built in which benefit from the installation of the RTS (included with inverter/chargers). With the RTS you can make sure that your OutBack Power System knows the precise battery temperature, so it can recharge your batteries safely and efficiently. If your system has multiple OutBack products connected to one HUB4 or HUB10, only a single RTS needs to be installed.

The OutBack Remote Temperature Sensor (RTS) works with the MX60, FLEXmax60, FLEXmax80 charge controllers and OutBack inverters.

FAQs

• If I have two OutBack Power FM60-150VDCs, do I need two OutBack Power remote temperature sensors (RTS), or can I cross over or splice over?
  Systems with multiple OutBack products connected to one HUB4 or HUB10.3 require installation of only a single RTS.
• Why is the Remote Temperature Sensor in gray and not green?
  In 2020, OutBack Power changed the color of the RTS from green to gray and the gray version is the new model RTS.

Attachments

• OutBack Power RTS Remote Temperature Sensor Application Note
