IronRidge
IronRidge QM-BUG-01-M1 BUG Conduit Mount, Mill
- SKU:
- QM-BUG-01-M1
- Condition:
- New
- Availability:
- Ships in 1 business day or less.
- Weight:
- 0.25 LBS
- Warranty:
- 25 Year Manufacturer
- Shipping:
- Stellar Speed! ADD TO CART TO ESTIMATE SHIPPING
IronRidge QM-BUG-01-M1 BUG Conduit Mount, Mill
Keep Your Conduit Snug

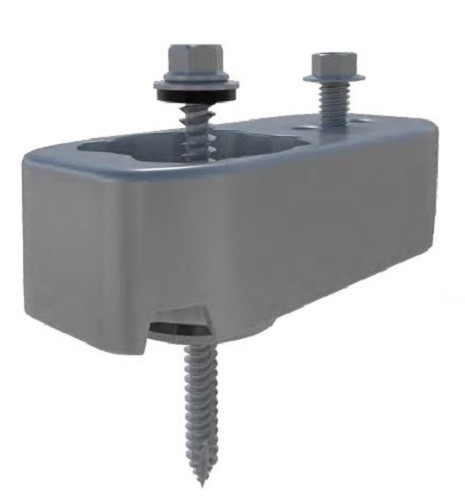

The QuickMount® BUG™ is our latest conduit mount. Compact, sturdy and unobtrusive—leveraging the same proprietary UltraGrip™ flashing system as the HUG™ attachment.
BUG™ comes with the IronRidge® RD Structural Screw and a tri-lobe, thread-forming screw that couples with locally-sourced straps. Attach it to a rafter or the deck, in any orientation.
No prying shingles. No drilling pilot holes. No applying sealant.
A Conduit Mount Metamorphosis
BUG™ carries a transformation of ease to any job.
- Crawls low to the roof with 1” of clearance
- Three strap location options for linear adjustment
- Rotational adjustability of up to 10 degrees
- Approved for use: up to 1” UNIV – EMT, RMC, IMC, Rigid PVC and Liquid Tight Flexible Metallic Conduit (up to 1-1/4″ EMT & Rigid PVC)
- Also approved for use with listed hangers, straps or alternative mounting devices (strut, bridging, etc.)
- Certified and listed to UL 2703A and UL 2239
- Evaluated to UL 441 and TAS 100A
- Backed by 25-year warranty
