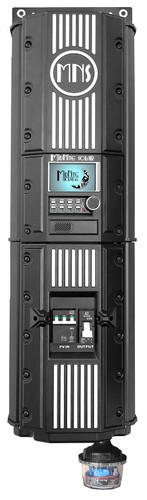

MidNite Solar MNHAWKE'S BAY 120 PW Pre-Wired Solar Controller

MidNite Solar MNHAWKE'S BAY 120 PW Pre-Wired Solar Controller 600VDC 120A

The Hawke's Bay 120 is the most powerful and versatile systems in its class. Ideal for large-size stand alone and grid-tied renewable energy systems.

Features

• 120 amp 48V output
• Operating Voltage of 185 to 585 volts
• Ideal for larger DC coupled battery based on-grid and off-grid installations
• Talking MNGP2 display (Canbus) included. No other display required when coupled with MidNite Solar inverters and other MidNite Solar products.
• The MNGP2 graphics and programming module allows communication, monitoring, and programming of all future MidNite Solar products from a single unit.
• Rotary knob with push button for ease of navigating menus
• Hawke's Bay Breaker Box (MNHAWKE'S BAY BB 125) protects against excessive battery voltage excursions
• Die cast aluminum enclosure
• Battery Temperature Sensor (BTS) included
• MNSPD-600 surge protection device included
• Optional plug in AF/GF module
• Optional plug in Sunspec compliant Rapid Shutdown transmitter (module or string level)
• 2 Auxiliary outputs
• Quiet fan cooled. Fans relatively easy to replace.
• Companion to the 7000 watt Rosie inverter
• Safety certifications: UL1741 and CE low voltage directive EN50178
• Recommend Maximum Array: Up to 8100W
• 5 year warranty
• Designed and assembled in the USA

We do not accept returns for custom built pre-wired systems.

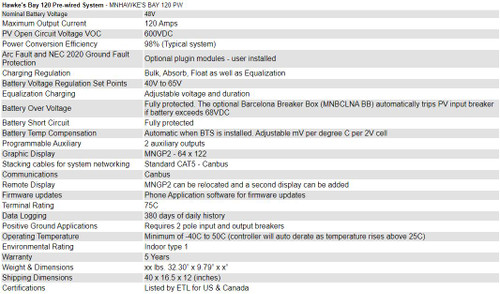

Specifications

Attachments

• MidNite Solar MNHAWKE'S BAY 120 Charge Controller 600VDC Brochure
• MidNite Solar Barcelona and Hawke's Bay Breaker Box
