Description

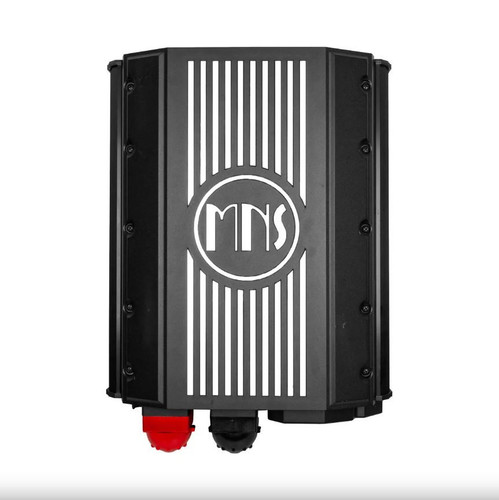

MidNite Solar MNROSIE7048M Rosie Mobile Inverter/Charger 7000W 48VDC

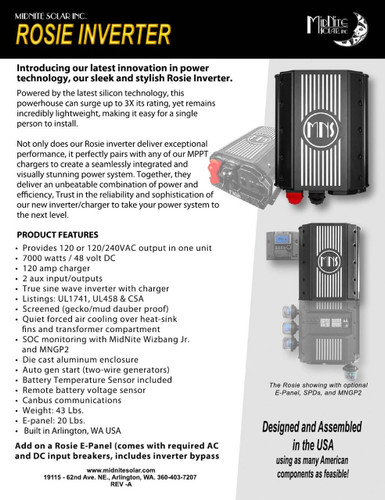

Introducing our latest innovation in power technology - our sleek and stylish Rosie inverter; designed and made right here in the United States. Powered by the latest silicon technology, this powerhouse can surge up to 3X its rating, yet remains incredibly lightweight; making it easy for a single person to install. Not only does our Rosie inverter deliver exceptional performance, it perfectly pairs with any of our MPPT chargers to create a seamlessly integrated and visually stunning power system. Together, they deliver an unbeatable combination of power and efficiency. Trust in the reliability and sophistication of our new inverter/charger to take your power system to the next level.
Rosie Mobile has all the same features and performance of our standard RE Rosie with the addition of a neutral to ground bond switching relay and UL458 listing.
Specifications
- Neutral to ground switching internally
- 120v input auto sense for RVs that connect to 50A 120/240 or 30A 120
- Provides 120 or 120/240VAC output in one unit
- 7000 Watts / 48 VDC
- 120 Amp charger
- Maximum Input Voltage: 65VDC
- 2 aux input/outputs
- True sine wave inverter with charger
- Listings: UL1741, UL458 & CSA
- Screened (gecko/mud dauber proof)
- Quiet forced air cooling over heat-sink fins and transformer compartment
- SOC monitoring with optional MidNite Wizbang Jr. and MNGP2
- Die cast aluminum enclosure
- Auto gen start (two-wire generators)
- Battery Temperature Sensor (BTS) included
- Remote battery voltage sensor
- Canbus communications
- Built in Arlington, WA USA
Add on an optional Rosie E-Panel (comes with required AC and DC input breakers, includes inverter bypass breakers)
FAQs
- How many amps can the MidNite Solar MNROSIE7048M pass through?
It can pass through 60A per leg. - Can I connect a 2-wire Onan generator installed in my RV with 2 legs of 120VAC, connecting one leg of 120VAC into L1 and another leg of 120VAC into L2 (not 240VAC)?
Yes, the MNROSIE7048M will autodetect 120/240, 120/120, or 120/208. - If I am able to hook up 120VAC to L1 and 120VAC to L2 (not split-phase), will it affect the maximum output current of 120A?
No, just keep in mind that if you feed the MNROSIE7048M with 120VAC on each leg, it will pass through 60A per leg.
Attachments
- MidNite Solar MNROSIE7048RE Brochure
- MidNite Solar MNROSIE7048RE Owner's Manual
- MidNite Solar Warranty
