Description

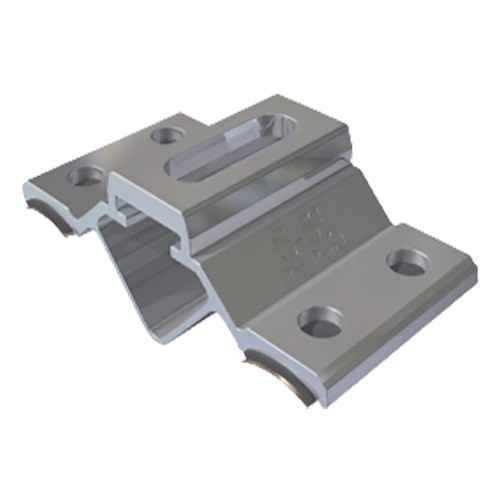

S-5! CorruBracket 100T Mounting Bracket. M8 bolt and roof screws not included.
With the CorruBracket 100T, the “100” designation refers to imperial dimensioning (see the “500” for metric compatibility).
The 100T is specifically designed to securely and safely attach walkways and other utilities, rail-based PV systems or low-profile, direct-attach, solar mounting with the S-5-PVKIT®. For added height when mounting solar with the PVKIT, check out the CorruBracket 100T PV.
Attachment Versatility

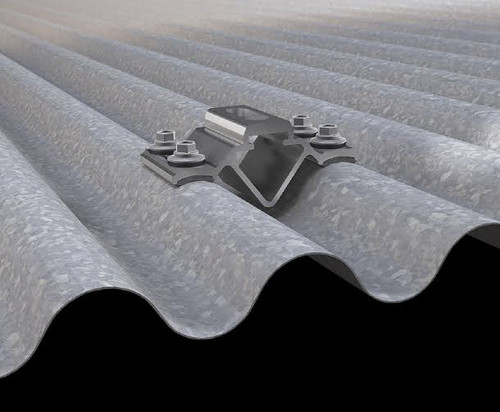

The 100T fastens directly into the crest of the corrugation, leaving the drainage plane free of fastening holes. CorruBracket 100T fastens in the high (or on top of the ribs) out of the water plane. Fix into sheeting or directly through sheeting into structure. The 100T accommodates a rib pitch of +/- 2.67” (68 mm).
For medium-duty applications, the 100T can be used as a sheeting-only attachment to attach anywhere along the corrugation. For heavy-duty applications, the bracket can be fixed into the underlying deck or purlin for additional support. The “V” configuration prevents crushing of the ribs when significant downward forces are present.

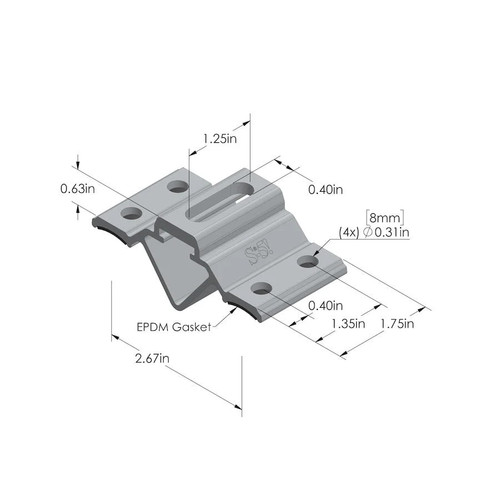

CorruBracket 100T Product Specifications:
- 7/8” and 3/4” (h) x 2.67” rib-pitch U.S. corrugated profiles
- Mounts directly into crest of corrugation, straddling valley
- Fastens into sheeting OR through sheeting into structure
- Slotted top hole simplifies alignment, with adjustability
