Description

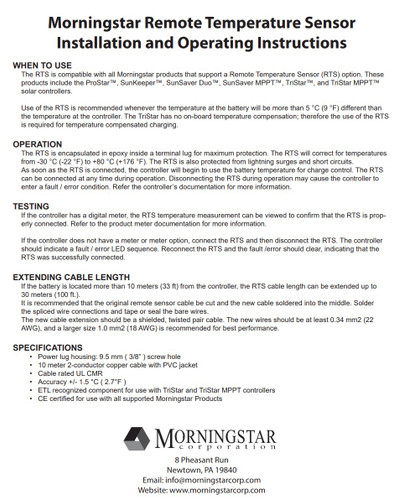

Morningstar Remote Temperature Sensor RTS.
Morningstar's Remote Temperature Sensor (RTS) provides very accurate battery charging in solar systems that experience temperature variations during the year. The RTS is recommended whenever the temperature of the battery varies more than 5°C (9°F) during the year.

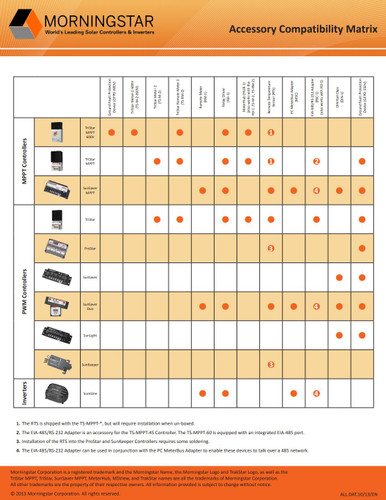

The RTS is compatible with:
- SunSaver MPPT™
- SunKeeper™
- SunSaver Duo™
- ProStar™ whenever the temperature at the battery will be more than 5°C (9°F) different than the temperature at the controller.TriStar™ for battery charging or diversion control modes (not for load control mode)
For maximum protection from harsh environments, the sensor is encapsulated in epoxy inside a power lug housing. The RTS is also protected from lightning surges and short circuits.
Key Features and Benefits
- Cable length: 10 meters (33 feet)
- Accurate to +/–1.5°C (2.7°F)
- Extendable cable length
- Wide temperature correction range –30°C (-22°F) to +80°C (+176°F)
- Wires are non-polarized
- Sensor noise is filtered
Other brands survive harsh conditions. Morningstar thrives in them.
With more than 25 years of experience and well over four million products in over 100 countries – most of them still in operation – Morningstar has truly earned its reputation for building the “world’s leading solar controllers.” At Morningstar, the word “reliability” means a lot more than a marketing adjective. Morningstar’s employee-owned culture works hard to maintain the lowest hardware failure rate in the industry, because our own reputations literally ship with every product.
That’s why system designers of the most mission-critical solar energy installations around the world insist on Morningstar components, and why you should too on your next project. From mineral mines in South America to telecom repeater stations in Canada, from gas wells in the Middle East to mountain peaks in Nepal, Morningstar technology and legendary quality make the difference between success and failure – and make renewable energy a practical, cost-effective, and long-term solution.
