Description

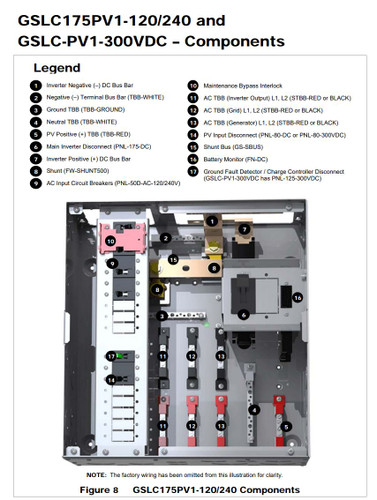

OutBack Power GSLC175-PV1-120/240 Radian Series Load Center.
OutBack Power’s GS Load Centers are an integrated connection enclosure series for AC and DC system connections in OutBack Radian Series inverter/charger applications, through provided inverter DC overcurrent protection and disconnects, dual AC inputs, grid-tie inverter connection and 120/240VAC or 230V maintenance bypass.
Designed for use with the Radian Series inverter/charger family, the options offer solutions for ground-up custom designs or factory pre-wired configurations for specific applications. The OutBack GS Load Centers simplify the configuration, distribution, and implementation of energy storage of the Radian Series inverter/charger through a standardized approach.
Attachments
- OutBack Power GS Load Center Datasheet
- OutBack Power GSLC Installation Manual
- OutBack Power GS4048A and GS8048A QuickStart Guide with GSLC
- OutBack Power GS7048E / GS3548E Quick Start Guide with GSLC
- OutBack Power Warranty for Balance of System
