MidNite Solar MNE175STM-240 E-Panel Magnum PAE 120/240VAC

$535.65
Brand Name:
MidNite Solar
Shipping:
Free Shipping
SKU:
MNE175STM-240 Magnum
Condition:
New
Weight:
42.00 LBS
Availability:
Ships in 20 business days or less.
Quantity:

Product Description

MidNite Solar       Made in the USA Shield

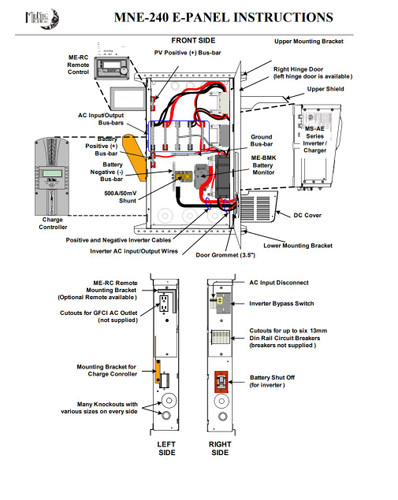

MidNite Solar MNE175STM-240 E-Panel Magnum PAE 120/240VAC

White steel for 120/240VAC in & out for MS4448-PAE. Comes standard with left hand door.

  • Main Breaker Current Rating - 175
  • Number of spaces - 10
  • Environmental Rating - Type 1 (Indoor)
  • Max. Wire Size - 4/0
  • Max. AC Voltage - 240VAC
  • Max. DC Voltage- 300VDC
  • Warranty - 5 yrs.
  • Listed by ETL for US & Canada
  • Made in the USA

Options

  • MNE175STS-240: Left-hand version.
  • MNE175STS-240-R: Right-hand version.
  • MNE175STM-240-E:The MNE175STM-240-E is our Export version. It is the same E-Panel but with the proper color wires and proper breakers for a 230v 50hz inverter.
  • MNE175STM-240-R-E: The MNE175STM-240-E is our Export version. It is the same E-Panel but with the proper color wires and proper breakers for a 230v 50hz inverter. Right-hand version.
  • MNE175STM-240-RSS: Rapid Shut down compliant E-Panel. Includes Remote trip breaker upgrade, Battery disconnect module installed and tested to work with the Birdhouse and be 690.12 compliant. (REQUIRES Bird House, shown below in recommended accessories).
  • MNE175STM-240-R-RSS: Rapid Shut down compliant E-Panel. Includes Remote trip breaker upgrade, Battery disconnect module installed and tested to work with the Birdhouse and be 690.12 compliant. (REQUIRES Bird House, shown below in recommended accessories). Right-hand version.
  • MNE175STM-240-E-RSS: Rapid Shut down compliant E-Panel. Includes Remote trip breaker upgrade, Battery disconnect module installed and tested to work with the Birdhouse and be 690.12 compliant. (REQUIRES Bird House, shown below in recommended accessories). Export version. It is the same E-Panel but with the proper color wires and proper breakers for a 230v 50hz inverter.
  • MNE175STM-240-R-E-RSS: Rapid Shut down compliant E-Panel. Includes Remote trip breaker upgrade, Battery disconnect module installed and tested to work with the Birdhouse and be 690.12 compliant. (REQUIRES Bird House, shown below in recommended accessories). Export version. It is the same E-Panel but with the proper color wires and proper breakers for a 230v 50hz inverter. Right-hand version.

Special Notes

  • The AE series comes with all the regular E-Panel features plus terminal bus bars for 120/240VAC input and output.
  • 120 VAC E-Panels cannot be adapted for use with 120/240 inverters.
  • Left-hand units are standard. For E-Panels built as Right hand units, an "-R" must be added. Right-hand versions have the hinge on the right, circuit breakers on the right and charge control bracket on the left.
  • All of Midnite Solar’s listed balance of system products qualify for the US federal tax credit when used in a new, qualifying renewable energy system.
