MidNite Solar MNE250STM-240 E-Panel Magnum PAE 120/240VAC

$535.65
Brand Name:
MidNite Solar
Shipping:
Free Shipping
SKU:
MNE250STM-240 Magnum
Condition:
New
Weight:
42.00 LBS
Availability:
Ships in 20 business days or less.
Quantity:

Product Description

MidNite Solar       Made in the USA Shield

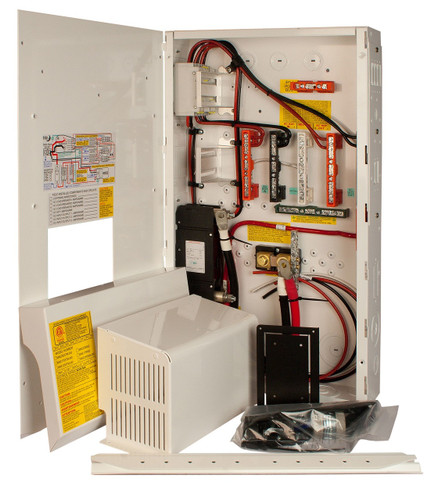

MidNite Solar MNE250STM-240 E-Panel Magnum PAE 120/240VAC

White steel for 120/240VAC in & out for MS4024-PAE. Comes standard with left hand door.

  • Main Breaker Current Rating - 250
  • Number of spaces - 10
  • Environmental Rating - Type 1 (Indoor)
  • Max. Wire Size - 4/0
  • Max. AC Voltage - 240VAC
  • Max. DC Voltage - 300VDC
  • Warranty - 5 yrs.
  • Listed by ETL for US & Canada
  • Made in the USA

Options

  • MNE250STM-240: Left-hand version
  • MNE250STM-240-R: Right-hand version
  • MNE250STM-240-E: The MNE250STM-240-E is our Export version. It is the same E-Panel but with the proper color wires and proper breakers for a 230v 50hz inverter.
  • MNE250STM-240-R-E: The MNE250STM-240-E is our Export version. It is the same E-Panel but with the proper color wires and proper breakers for a 230v 50hz inverter. Right-hand version.
  • MNE250STM-240-RSS: Rapid Shut down compliant E-Panel. Includes Remote trip breaker upgrade, Battery disconnect module installed and tested to work with the Birdhouse and be 690.12 compliant. (REQUIRES Bird House, shown below in recommended accessories).
  • MNE250STM-240-R-RSS: Rapid Shut down compliant E-Panel. Includes Remote trip breaker upgrade, Battery disconnect module installed and tested to work with the Birdhouse and be 690.12 compliant. (REQUIRES Bird House, shown below in recommended accessories). Right-hand version.
  • MNE250STM-240-E-RSS: Rapid Shut down compliant E-Panel. Includes Remote trip breaker upgrade, Battery disconnect module installed and tested to work with the Birdhouse and be 690.12 compliant. (REQUIRES Bird House, shown below in recommended accessories).
  • MNE250STM-240-R-E-RSS: Rapid Shut down compliant E-Panel. Includes Remote trip breaker upgrade, Battery disconnect module installed and tested to work with the Birdhouse and be 690.12 compliant. (REQUIRES Bird House, shown below in recommended accessories). Right-hand version.

Special Notes

  • The AE series comes with all the regular E-Panel features plus terminal bus bars for 120/240VAC input and output.
  • 120 VAC E-Panels cannot be adapted for use with 120/240 inverters.
  • Left-hand units are standard. For E-Panels built as Right hand units, an "-R" must be added. Right-hand versions have the hinge on the right, circuit breakers on the right and charge control bracket on the left.
  • All of Midnite Solar’s listed balance of system products qualify for the US federal tax credit when used in a new, qualifying renewable energy system.
