MidNite Solar
MidNite Solar MNE250STSLT E-Panel 250A/125VDC Breaker
- SKU:
- MNE250STSLT
- Condition:
- New
- Availability:
- Ships in 20 business days or less.
- Weight:
- 30.00 LBS
- Warranty:
- 5 Year Manufacturer
- Shipping:
- FREE SHIPPING

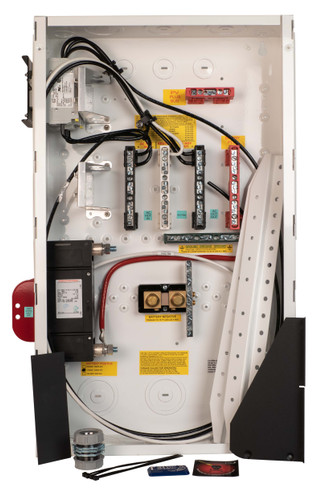

MidNite Solar MNE250STSLT E-Panel with 250A/125VDC Panel Mount Circuit Breaker
Features
- Gray steel with 250A/125VDC inverter breaker.
- Listed by ETL for US & Canada
- 4 feet of AC wiring to go to the inverter
- AC Bypass installed and wired
- DC Shunt installed
- PV Positive bus bar installed
- DC Positive bus bar installed
A generic E-Panel to be used with inverters that don't already have their own specific E-Panel.
Circuit Breakers Included
- 1x MNEDC250 Panel Mount Circuit Breaker
- 4x MNEAC50QZD 277VAC 1-Pole DIN Mount Circuit Breakers
