Outback Power MATE System Display and Controller

Outback Power MATE System Display and Controller.

Product Highlights

• Simple system management
• Four soft keys allow easy context-based navigation of menus and functions
• Built-in clock and calendar function
• Two hot keys give immediate access to AC and inverter functions
• Includes: OutBack Power OBCAT 3 and OBCAT 10 Cat 5 cables with RJ45 connectors

The MATE system display and controllers are complete management tools for your OutBack Power system. Through the use of a single MATE, you can remotely manage and monitor multiple inverter/chargers, MX60s and any future OutBack power conversion and control products.

The MATE is packed full of features to make system management simple. The easy-to-read 3.1" (8 cm) LCD is backlit for dark operating conditions. Four soft keys allow easy context-based navigation of menus and functions. Two hot keys give immediate access to AC and inverter functions.

A built-in clock and calendar function enables timer based programming of inverter and charger operation, allowing operators to set the system to work with time-of-day power rates or to limit a generator's runtime to a specific time period of the day or week. All of your settings are stored in permanent memory to eliminate the need to reprogram in the event of a system shutdown or battery replacement. The MATE includes an RS232 port with DB9 jack for connection to the serial port of a PC computer. Through the use of optional WinVerter software, operators can perform actions such as data-logging and graphical display of the system's operation and performance. The MATE system display and controller is surface mounted.

FAQs

• Can I use the OutBack Power MATE with an OutBack Power GS8048A-01 Radian Inverter?
  No, you need an OutBack Power MATE3s to program "-01" model inverters.
• Can I use the OutBack Power MATE Display with an FM60/FM80 Charge Controller and another brand inverter?
  Yes, however, the data provided by the OutBack Power MATE will not be as complete if you do not also have an OutBack Power inverter.

Attachments

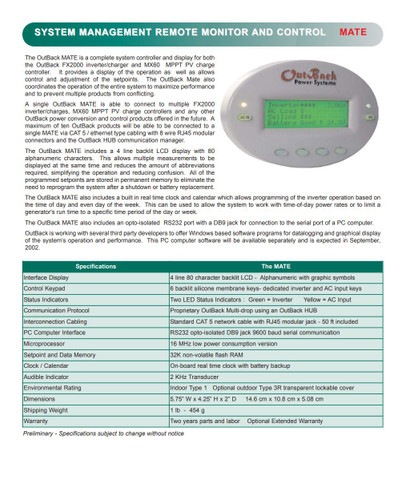

• Outback Power MATE Specifications Sheet
• Outback Power MATE Series Overview
• Outback Power MATE Installation and User Manual
• Outback Power Serial Communications Guide
