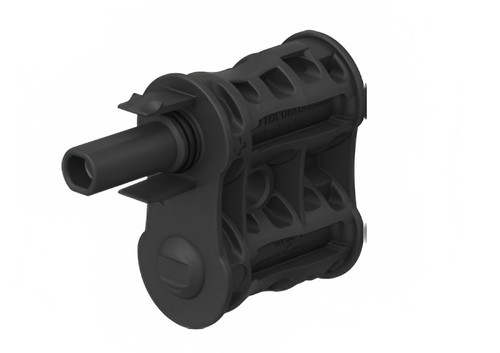

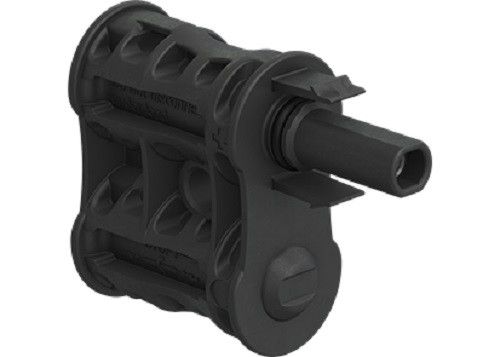

Stäubli 32.0197 MC4 Branch Connector MC4-Evo 2 Male PV-AZS4-EVO 2-UR
Stäubli MC4-Evo 2 Branch Connectors are 2 to 1 connectors that allow for a safe and simple parallel or serial-parallel connection of PV modules. Available in either 2 female to 1 male, or 2 male to 1 female, and pluggable with single-pole MC4 and MC4-Evo 2 connectors. More than 50% of the world’s PV power is installed using MC4 connectors (over 1 billion in total). For this reason, MC4s are often viewed as the standard connector in the solar energy industry.
- Voltage rating: 1500 V DC (UL/IEC)
- Amperage rating: 95A (UL), 60A (IEC)
- IP68 (mated) / IP2x (unmated)
